Hydraulic Check Valve
Areas of Use
Safe and Controlled Flow Management for Fire Protection Systems
Hydraulic Check Valves are automatic, hydraulically operated valves designed to prevent backflow in fire pump discharge lines, providing a safer and more reliable alternative to conventional check valves. When the outlet pressure exceeds the inlet pressure, the valve closes smoothly without causing water hammer, protecting critical components of the fire protection system. When the inlet pressure rises above the outlet pressure, the valve opens in a controlled manner, ensuring safe and continuous flow.
This operating principle helps prevent sudden pressure surges that can occur during pump start-up, thereby safeguarding pumps, pipes, and fittings. With its robust body construction, low maintenance requirements, and long service life, the Hydraulic Check Valve is ideal for use in fire water systems. Its soft opening and closing action enhances system efficiency while extending the lifespan of both the pipeline and the pump.
- Features
Its simple structure makes it easy to use and maintain.
Low cost.
Operation in a wide pressure range.
Flawless modulation even at low flow rates.
Flexible diaphragm for shock-free opening and closing.
Reinforced diaphragm and internal spring for complete sealing.
Long life with epoxy and polyester coating.
A wide range of control applications with the use of various pilot valves.
Ability to operate in horizontal and vertical positions in various application areas.
- Order information
Please provide the following information in case of order
Maximum flow rate ..................................... m³/h
Maximum network/operating pressure ................ bar
Main pipe diameter ................................................ mm
Valve connection type

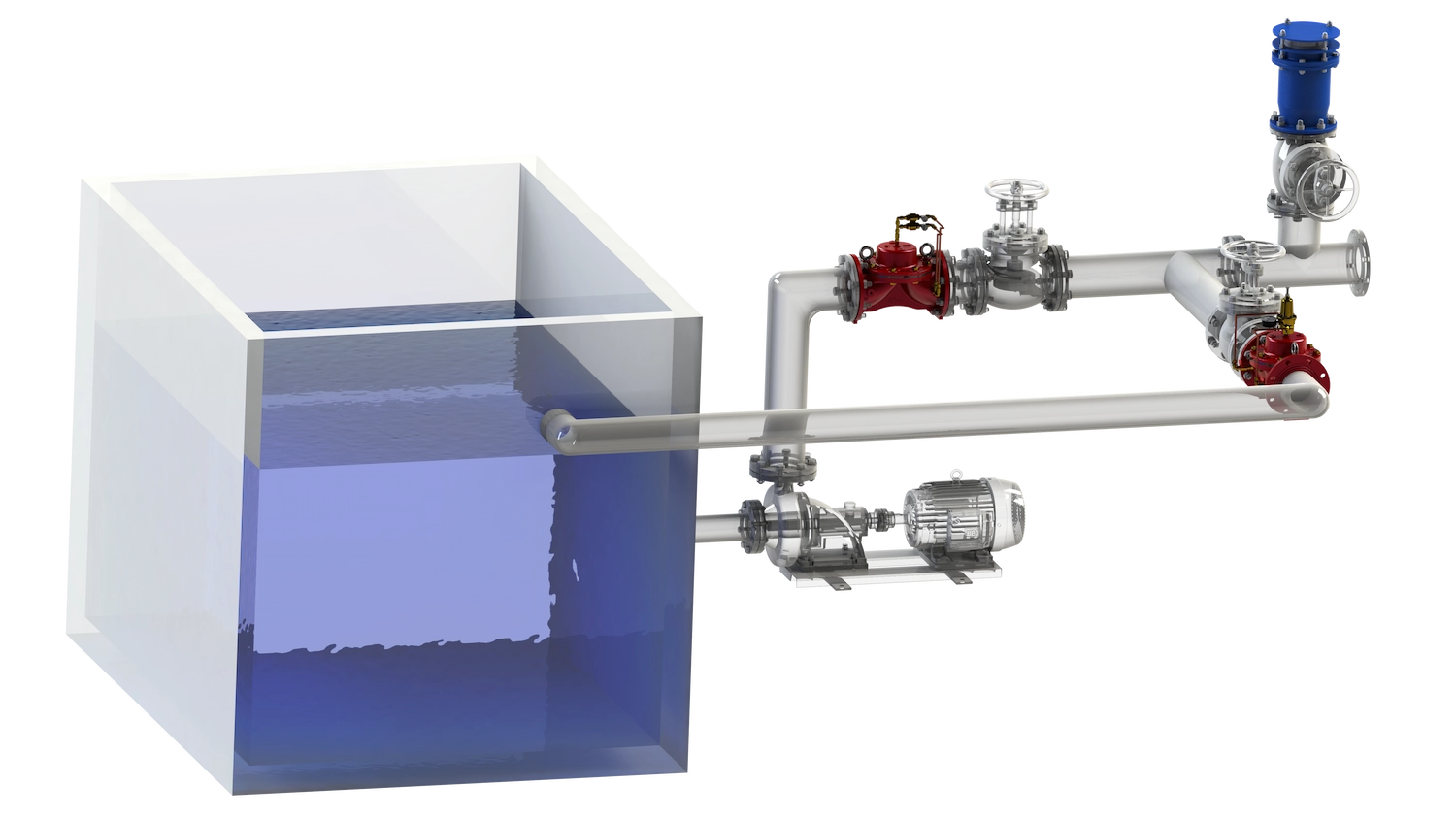

- Application Example
- Catalogue
