Solenoid Controlled Pressure Reducing Hydraulic Control Valve
Areas of Use
Solenoid Controlled Pressure Reducing Control Valve is an advanced hydraulic control valve that provides the desired constant pressure in the outlet line by precisely reducing the inlet pressure. The on-off control of the main valve is carried out by means of solenoid coils mounted on it. Solenoid coils work with electrical signals from equipment such as control devices, time relays, switches or PLC automation systems. In this way, it offers fully automatic pressure control and remote control in systems. Thanks to its advanced structure, it prevents high pressure fluctuations, ensures that the water remains constant at the desired pressure value and increases system safety.
Coil Options
- Baccara 24 V AC
- Baccara 12 V DC Latch
- Burkert 24 V AC
- Features
Its simple structure makes it easy to use and maintain.
Low cost.
Operation in a wide pressure range.
Flawless modulation even at low flow rates.
Flexible diaphragm for shock-free opening and closing.
Reinforced diaphragm and internal spring for complete sealing.
Long life with epoxy and polyester coating.
A wide range of control applications with the use of various pilot valves.
Ability to operate in horizontal and vertical positions in various application areas.
- Order information
Please provide the following information in case of order
- Maximum flow rate .................................. m³/h
- Maximum network/operating pressure .............. bar
- Main pipe diameter ............................................. mm
- Valve connection type
- Maximum valve inlet pressure ........................ bar
- Minimum valve inlet pressure ............................. bar
- Desired outlet pressure value ............................. bar
- Electrical voltage value to be used . ................ volts

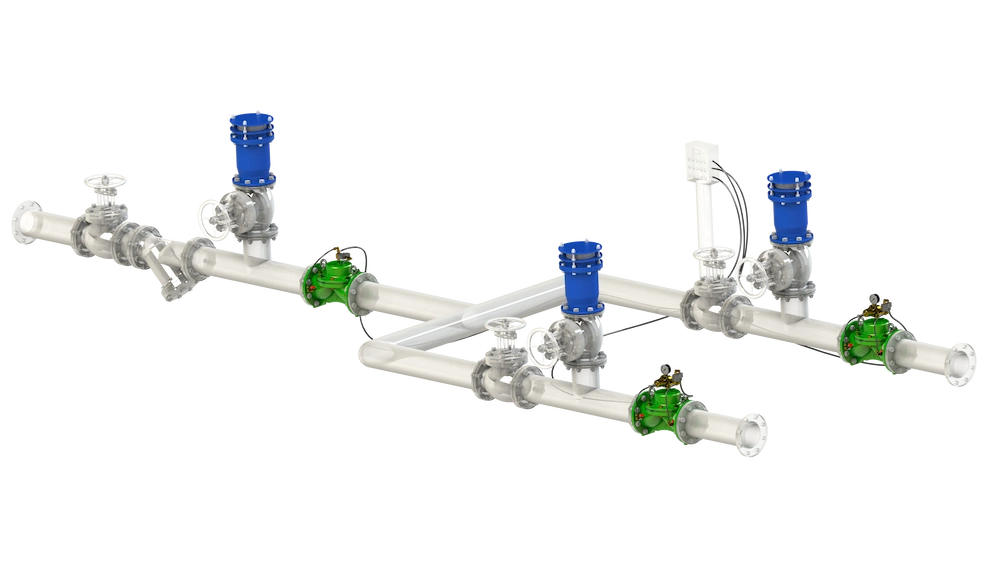

- Application Example
- Catalogue
