Pressure Reducing Hydraulic Control Valve
Areas of Use
Precise and Reliable Pressure Regulation for Fire Protection Systems
The TYPHOON PR Model Pressure Reducing Hydraulic Control Valve ensures a stable and safe downstream pressure by reducing high inlet pressure to the desired level through an integrated pilot valve. Operating independently of flow and inlet pressure fluctuations, it maintains a constant outlet pressure, enhancing the safety and reliability of fire protection systems.
When the flow in the system stops, the valve automatically closes to prevent backflow or overpressure. It reopens smoothly when the inlet pressure drops below the set downstream pressure, ensuring continuous and balanced system performance.
Thanks to its flexibility for both horizontal and vertical installation, it easily adapts to different fire system designs. Widely used in fire water distribution networks and filtration lines, the PR Model offers long-lasting performance with its corrosion-resistant body and precise control characteristics. It is an ideal solution for all fire protection applications that require consistent and secure pressure regulation.
- Features
Its simple structure makes it easy to use and maintain.
Low cost.
Operation in a wide pressure range.
Flawless modulation even at low flow rates.
Flexible diaphragm for shock-free opening and closing.
Reinforced diaphragm and internal spring for complete sealing.
Long life with epoxy and polyester coating.
A wide range of control applications with the use of various pilot valves.
Ability to operate in horizontal and vertical positions in various application areas.
- Order information
Please provide the following information in case of order
- Maximum flow rate ................................................ m³/h
- Maximum network / operating pressure .................... bar
- Main pipeline diameter ........................................ mm
- Valve connection type
- Maximum valve inlet pressure ................................ bar
- Minimum valve inlet pressure................................. bar
- Required outlet pressure value.............................. bar

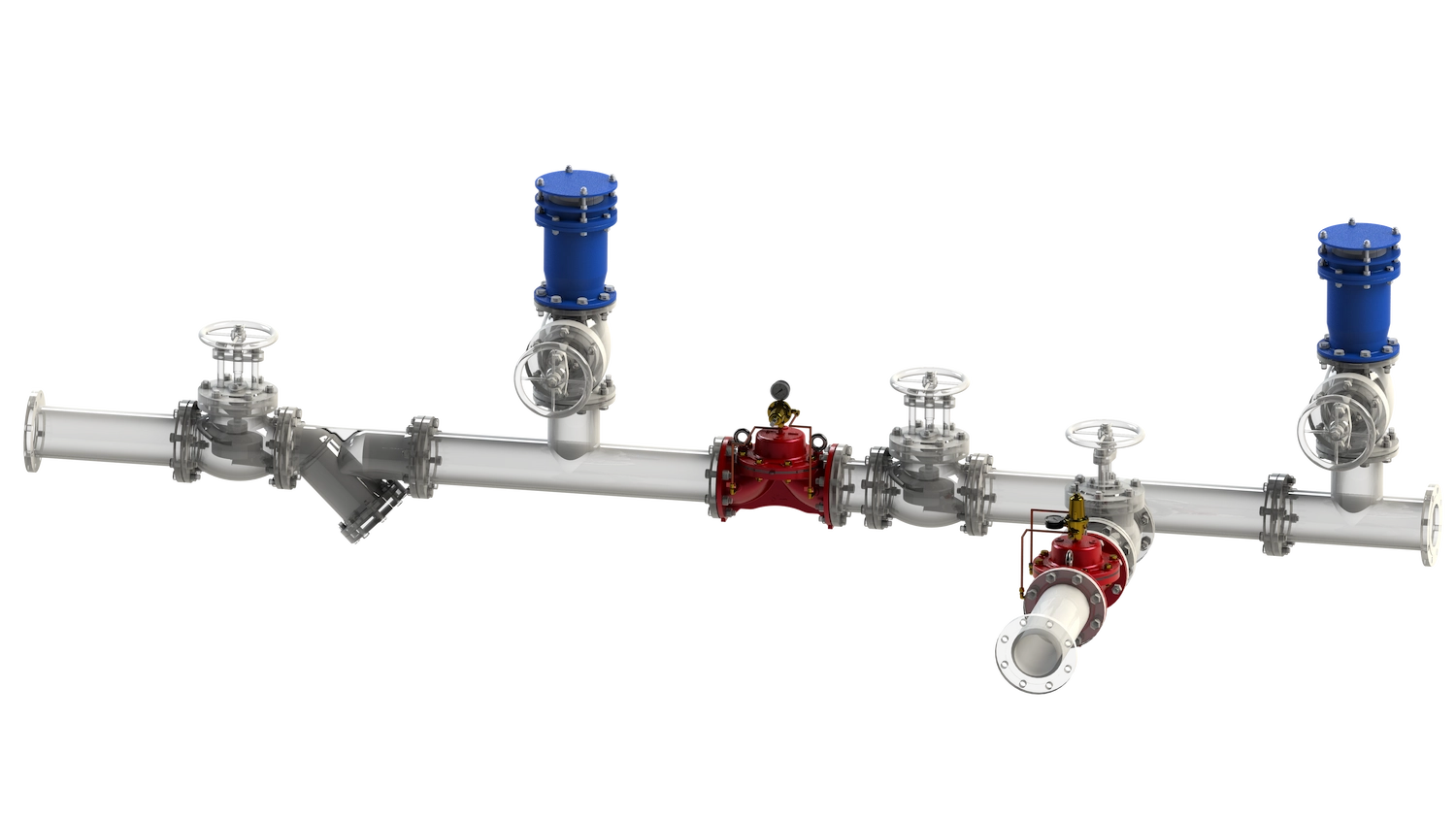

- Application Example
