Differential Float Level Control Valve
Areas of Use
Differential Float Level Control Valves are designed to precisely control the water level in the tanks within the desired range. Thanks to the differential float integrated into the valve, when the water level reaches the specified maximum point, the valve closes softly to prevent water hammer. Maximum and minimum water levels can be easily adjusted by the user over a wide range. Thanks to this feature, it saves energy and prolongs the life of the equipment by preventing frequent switching on and off of the pump, especially in pump-fed tanks. Provides constant level control without being affected by flow rate and pressure changes. It can be used safely in both bottom and top fed tanks. It offers reliable performance for many years with its durable structure and low maintenance requirement.
- Features
Its simple structure makes it easy to use and maintain.
Low cost.
Operation in a wide pressure range.
Flawless modulation even at low flow rates.
Flexible diaphragm for shock-free opening and closing.
Reinforced diaphragm and internal spring for complete sealing.
Long life with epoxy and polyester coating.
A wide range of control applications with the use of various pilot valves.
Ability to operate in horizontal and vertical positions in various application areas.
- Order information
Please provide the following information in case of order
Maximum flow rate ..................................... m³/h
Maximum network/operating pressure ................ bar
Main pipe diameter ................................................ mm
Valve connection type
Desired level control range ........................................ m

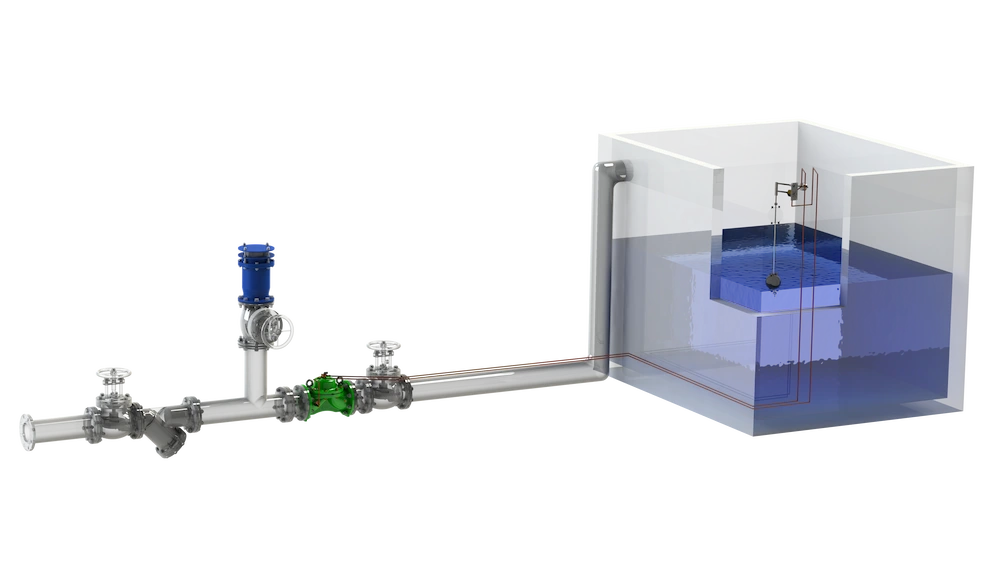

- Application Example
- Catalogue
