Electric Float Level Control Valve
Areas of Use
Electric Float Level Control Valve is a reliable solution that automatically monitors and controls the water level in the tank. The electric float placed in the tank transmits a signal to the solenoid coil on the main valve when the water level drops below the minimum value, allowing the valve to fully open and start filling the tank. When the water level reaches the maximum level, the float sends a closing signal to the solenoid coil and the valve cuts off the water flow. Thanks to its horizontal or vertical mounting options, it can be easily integrated into different system designs, thus providing continuous efficiency and automation in water storage systems.
- Features
Its simple structure makes it easy to use and maintain.
Low cost.
Operation in a wide pressure range.
Flawless modulation even at low flow rates.
Flexible diaphragm for shock-free opening and closing.
Reinforced diaphragm and internal spring for complete sealing.
Long life with epoxy and polyester coating.
A wide range of control applications with the use of various pilot valves.
Ability to operate in horizontal and vertical positions in various application areas.
- Order information
Please provide the following information in case of order
Maximum flow rate ..................................... m³/h
Maximum network/operating pressure ................ bar
Main pipe diameter ................................................ mm
Valve connection type
The voltage value to be used is ..................... volts

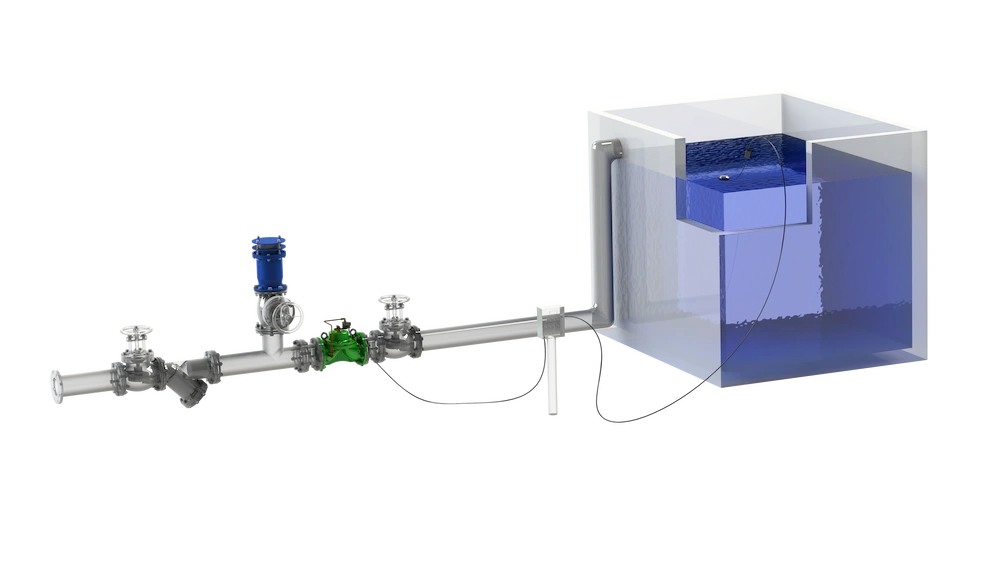

- Application Example
- Catalogue
