Quick Relief Hydraulic Control Valve
Areas of Use
Quick Relief Control Valve is a safety valve designed to protect the system by quickly relieving high pressure waves with its sudden opening feature in water systems with excessive pressure increases. Thanks to the pilot on it, the inlet pressure is precisely adjusted to the desired value. When the system pressure exceeds the specified level, the valve opens quickly and discharges the excess pressure to the outside and prevents possible damage. Despite its sudden opening feature, since it works on hydraulic principle, it performs its closing movement slowly and controlled, so it does not create additional pressure fluctuations in the system. It offers a long-lasting and reliable solution with its 100% leak-proof closing feature. It can be used alone at critical points in water systems or it can serve as a safety and warning valve in the outlet lines of pressure reducing control valves.
- Features
Its simple structure makes it easy to use and maintain.
Low cost.
Operation in a wide pressure range.
Flawless modulation even at low flow rates.
Flexible diaphragm for shock-free opening and closing.
Reinforced diaphragm and internal spring for complete sealing.
Long life with epoxy and polyester coating.
A wide range of control applications with the use of various pilot valves.
Ability to operate in horizontal and vertical positions in various application areas.
- Order information
Please provide the following information in case of order
- Maximum flow rate ................................................ m³/h
- Maximum network/operating pressure ........................ bar
- Main pipeline diameter ........................................................ mm
- Valve connection type
- Required valve inlet pressure ........................................ bar

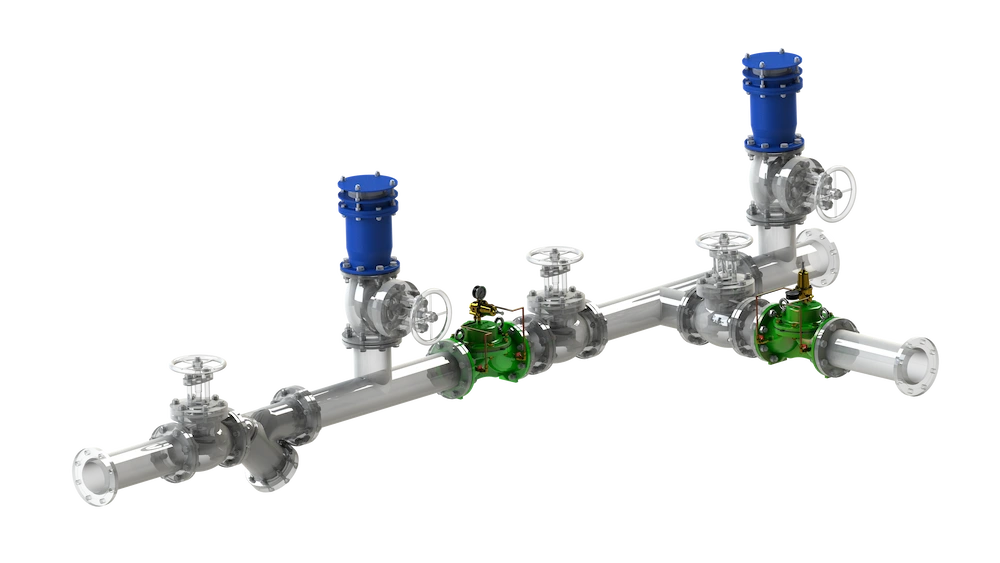

- Application Example
- Catalogue
