Manual Hydraulic Control Valve
Areas of Use
Manual Hydraulic Control Valves are reliable control elements that operate with line pressure and perform manual on-off operation through a 3-way mini valve. These valves, which start to operate with a minimum pressure of 0.7 bar, provide effective performance even in low pressure systems. Thanks to its flexible diaphragm structure, it responds quickly and precisely even in high pressure applications and carries out the control process smoothly. It prevents water hammer that may occur in the system with its soft closing feature instead of sudden interruption of flow. Thanks to its simple design, it has low maintenance requirements and offers long-lasting use. It is ideal for meeting the need for manual control in agricultural irrigation, industrial systems and general water infrastructures. It is a reliable choice for users looking for both economical and durable solutions.
- Features
Its simple structure makes it easy to use and maintain.
Low cost.
Operation in a wide pressure range.
Flawless modulation even at low flow rates.
Flexible diaphragm for shock-free opening and closing.
Reinforced diaphragm and internal spring for complete sealing.
Long life with epoxy and polyester coating.
A wide range of control applications with the use of various pilot valves.
Ability to operate in horizontal and vertical positions in various application areas.
- Order information
Please provide the following information in case of order
Maximum flow rate ............................................ m³/h
Maximum network/operating pressure ........................ bar
Main pipe diameter ........................................................ mm
Valve connection type

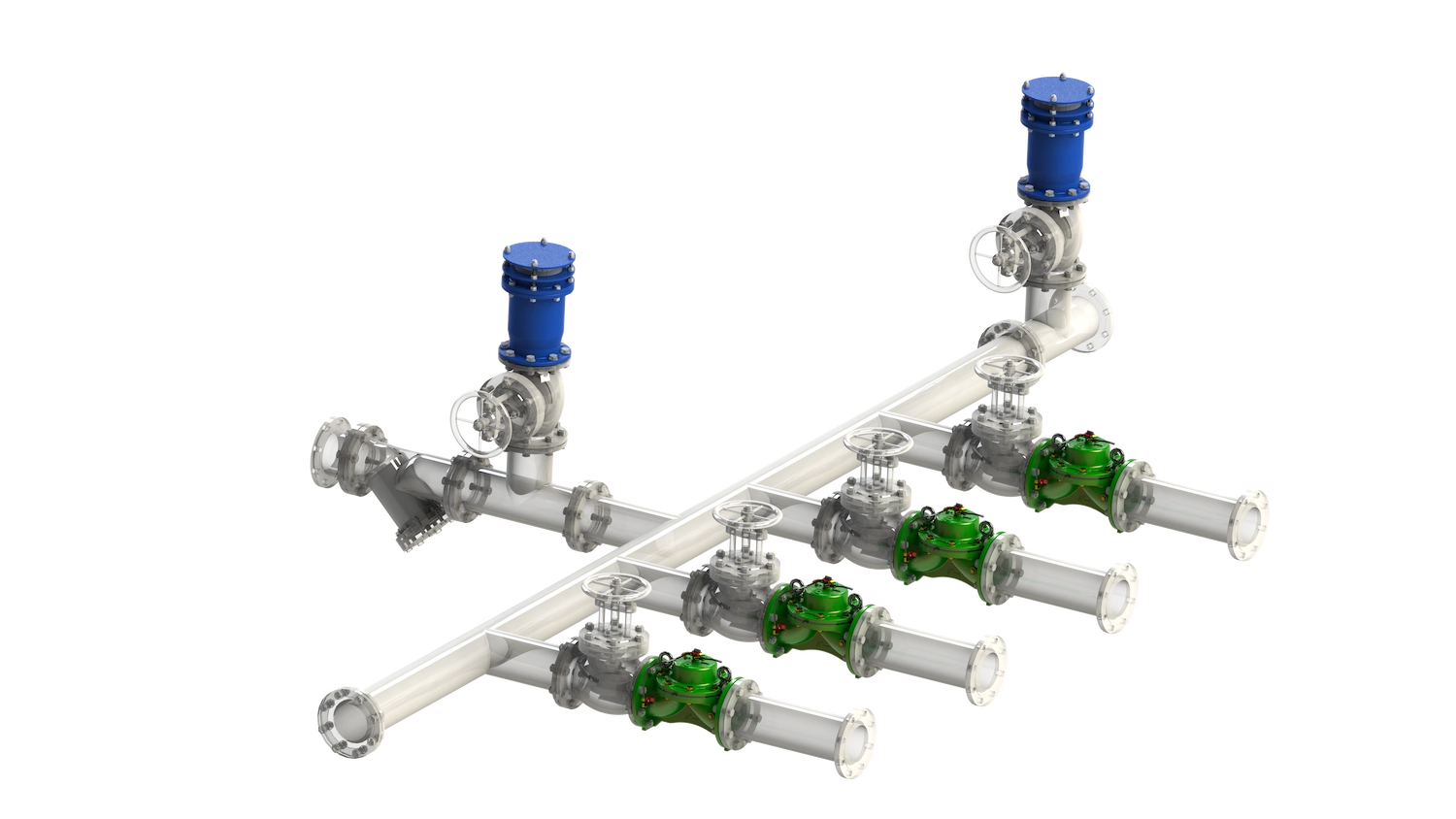

- Application Example
- Catalogue
