Deep Well Pump Control Valve
Areas of Use
Deep Well Pump Control Valves are designed to automatically switch on and safely switch off the pumps in the pumping lines of water networks. When the “start” button on the pump panel is pressed, the valve is in the closed position and slowly opens the flow in a controlled manner until it finds the pump speed. When the “stop” command is given, it closes gradually so as not to cause impact. When the valve is completely closed, the pump is automatically deactivated by means of the Limit Switch on it. In unexpected situations such as power failure, it acts as a check valve and prevents backflow towards the pump, thus eliminating the need to add extra check valves to the system. The soft on-off feature guarantees smooth and safe operation of the system while extending pump and pipeline life.
- Features
Its simple structure makes it easy to use and maintain.
Low cost.
Operation in a wide pressure range.
Flawless modulation even at low flow rates.
Flexible diaphragm for shock-free opening and closing.
Reinforced diaphragm and internal spring for complete sealing.
Long life with epoxy and polyester coating.
A wide range of control applications with the use of various pilot valves.
Ability to operate in horizontal and vertical positions in various application areas.
- Order information
Please provide the following information in case of order
Maximum flow rate ............................................ m³/h
Maximum network/operating pressure ........................ bar
Main pipe diameter ........................................................ mm
Valve connection type

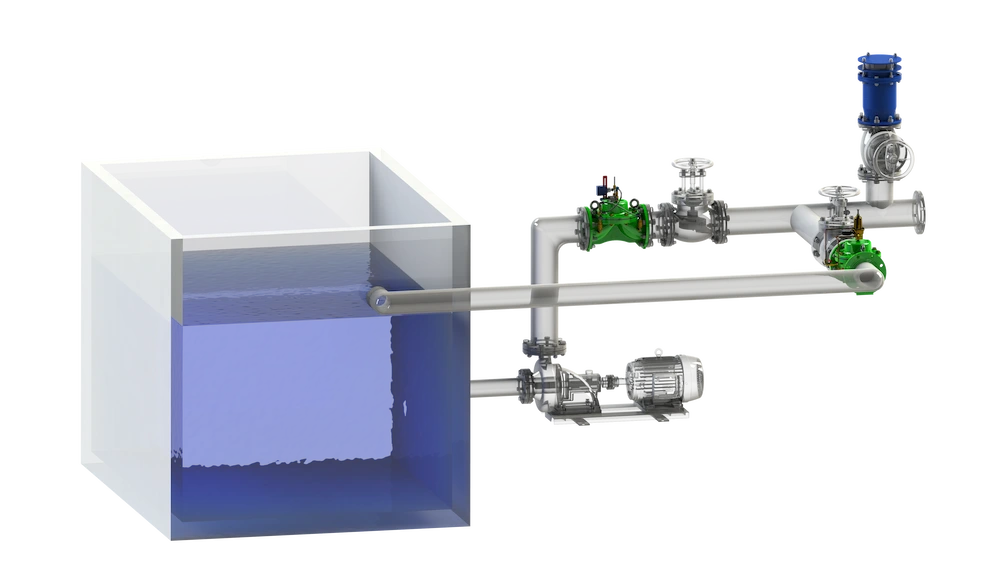

- Application Example
- Catalogue
